METAL SHREDDERS, HAMMER MILLS
Zato’s range of hammer mills for shredding ferrous and nonferrous metals guarantee maximum results in terms of reduction, cleanliness and purity of the final product. Zato Hammer mills are designed to produce a superior quality output with operating costs that are among the lowest in their class.
We offer solutions for every shredding need with the possibility of integrating efficient processing systems into your facility: from the powerful Blue Devil pre-shredder to the highly effective Blue Sorter downstream solutions.
General features
- High performance:
Optimally-designed with strategically positioned mobile hammers allow for efficient and rapid shredding of ferrous materials. - Versatility:
Mobile hammer mills are capable of processing a diverse array of ferrous scrap, including mixed and nonferrous materials, providing a flexible solution for various recycling applications. - Ruggedness and durability:
Built from premium steel and over engineered where it counts, mobile hammer mills are designed to withstand harsh conditions which ensures a long service life. - Ease of operation and maintenance:
Featuring user-friendly and accessible control systems, these Hammermills are designed for straightforward operation and easy maintenance, reducing downtime and maximizing overall efficiency in the recycling process. - Compactness:
With their space-saving design, these mills can be easily utilized and relocated both indoors and outdoors.
This is a key feature of the Blue Shark FP 12.10.
 Blue Shark 12.10 |

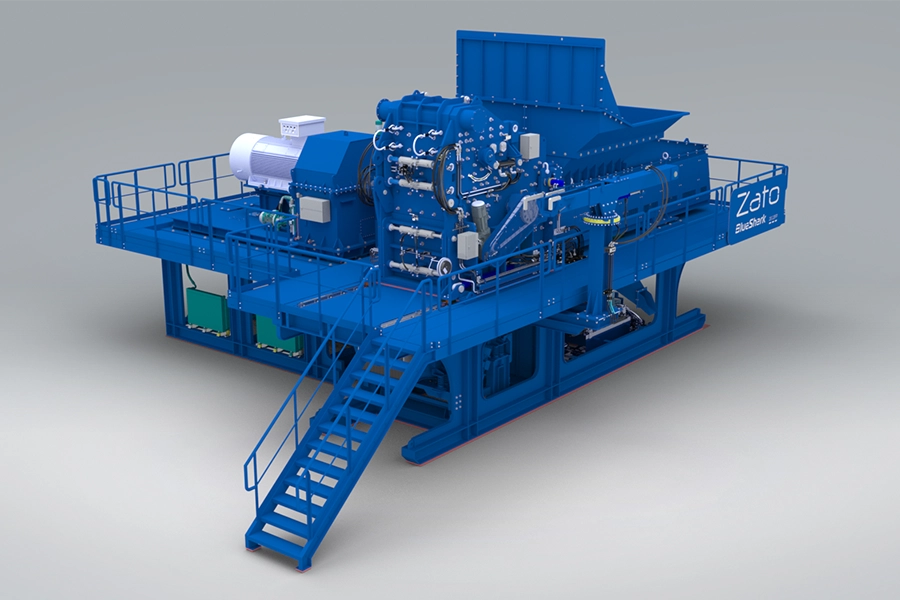

 Blue Shark 16.13 |

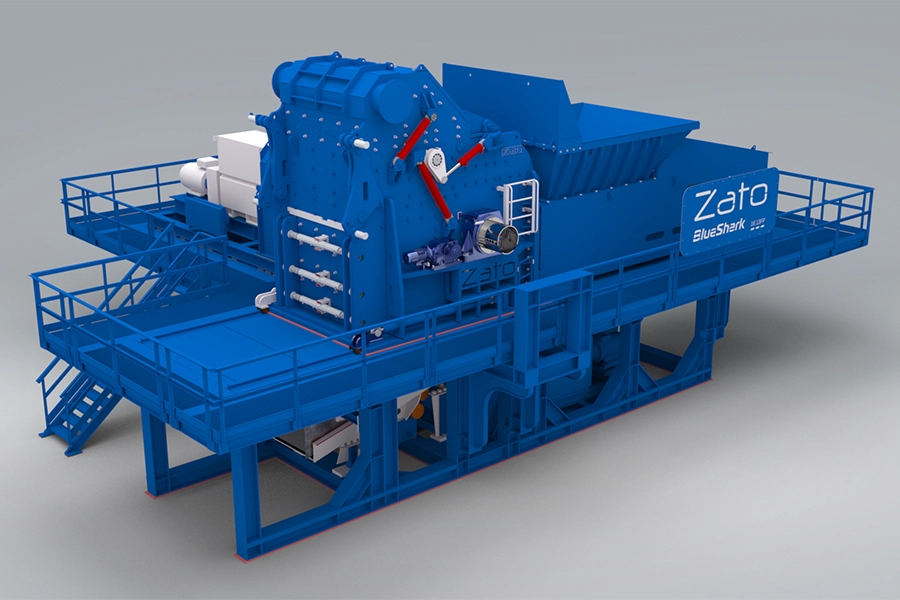

 Blue Shark 19.22 |
|
| Total weight | 37,5 t | 131 t | 210 t |
| Engine power | 315 kW – 450 kW | 900 kW / 1220 HP | 1500kW – 2200kW |
| Motorization | electric | electric/diesel | electric |
| Height | 4.7 m | 5.8 m | 7.5 m |
| Width | 7.4 mt | 11.3 mt | 17 mt |
| Depth | 3.2 m | 15 mt | 13.6 m |
| Rotor | |||
| Rotor diameter with open hammers | 1.2 m | 1.6 m | 1.9 m |
| Rotor width | 1 mt | 1.3 m | 2.2 m |
| Transmission type | belt-driven with fixed filling joint | universal joint with variable filler viscous coupling | universal joint with variable filler viscous coupling |
| Discover | Discover | Discover |
Why choose Blue Shark metal hammer mills
- Innovative design:
Zato hammer mills are built on welded steel frames reinforced with steel plates, providing maximum strength and durability. This distinctive design reduces incidental costs and simplifies installation, avoiding the need for costly civil works. - Available power:
From 315kW to 2200kW - Production capacity:
From 4 tons per hour to over 60. - Pre-assembly and testing:
Zato Hammermills are pre-assembled and tested in-house before shipping, allowing for early identification of critical issues and reducing assembly time to as little as three weeks. - Easy Maintenance:
For mills 16.13 and 19.22, an extraction equipment and maintenance platform is provided on board the mill for easy replacement of hammers. - Latest technology:
PLC control system for real-time machine management. Human Machine Interface (HMI) with integrated diagnostics for machine wear monitoring.
